Aero Engine Parts Manufacturers Help Choose Stainless Steel Engine Blisks

Choosing stainless steel for a blisk requires more than comparing material names or room-temperature tensile strength. You will be able to define the operating envelope, compare stainless grades with titanium, aluminium, nickel alloys and conventional rotors, and specify the evidence needed to approve a replacement or reverse-engineered part.

Key takeaways

  • Use stainless steel for cooler fan and low-pressure-compressor stages.
  • Specify the grade, heat-treatment condition and maximum metal temperature.
  • Recheck blade stresses when compressor-stage speed and pressure loads change.
  • Qualify reverse-engineered blisks against material, geometry, balance and fatigue evidence.

When does stainless steel make sense for a blisk?

Choose stainless steel for a blisk only when the rotor sits in a relatively cool fan or low-pressure-compressor stage, or in an industrial gas turbine with a defined moderate-temperature envelope.

Austenitic stainless steel loses strength quickly as temperature rises; precipitation-hardening grades such as 17-4 PH and 15-5 PH provide higher strength, but remain less capable at elevated temperature than nickel-based alloys. The cases in which aero engine parts manufacturers choose stainless steel engine for blisks depend on that boundary, not on the word “stainless” alone.

OptionMain advantageLimitationWhen it applies
Stainless steelCorrosion resistance, toughness and workable strengthHeavier than titanium or aluminium; temperature capability remains limitedCool compressor stages with controlled loads
TitaniumLow density and strong compressor-stage performanceHigher cost and sensitivity to rubs, fire risk and some contaminantsFan and higher-performance compressor stages
Aluminium alloyLowest density and easy machiningMuch lower strength and temperature limitLightly loaded, cool rotating sections
Nickel-based superalloyBest hot-strength and oxidation resistanceHigh density and difficult machiningHot compressor or turbine environments
Conventional bladed diskReplaceable blades and established overhaul routesDovetails, roots and joints add weight and stress concentrationsEngines prioritising field replacement over integral construction

Treat stainless steel aero engine blisks as a stage-specific decision. Reject a proposal that lacks the following evidence:

  • Exact grade, product form and heat-treatment condition
  • Applicable material specification and tensile and fatigue data
  • Maximum service temperature and corrosion environment
  • Traceability from billet or forging through final inspection
  • Balance, dimensional acceptance and engineering approval for the intended engine section

Which grade, heat-treatment condition and temperature limit should you specify?

Specify the grade, product form, material standard, complete heat-treatment condition and maximum metal temperature—not merely “stainless steel.” Blisk material selection must match the combined temperature–stress history, including centrifugal stress, start-stop low-cycle fatigue, blade-vibration high-cycle fatigue, fracture toughness and crack growth.

Grade and conditionStrength–toughness trade-offSpecification point
17-4 PH, H900Very high strength; lower toughness and stress-corrosion resistance than overaged conditionsUse only with approved temperature, fatigue and corrosion allowables
17-4 PH, H1150Lower strength; improved toughness and resistance to embrittlementConfirm that reduced tensile margin still meets centrifugal-stress requirements
15-5 PH or another gradeDifferent toughness, machinability, magnetic response and corrosion behaviourDo not substitute it for 17-4 PH without design approval and new allowables

State the product standard and revision for the actual form, such as ASTM A564 for wrought precipitation-hardening stainless steel or AMS 5643 where that specification applies. Record solution treatment, aging temperature and time, lot number, mill certificate and traceability from billet or forging through final inspection.

Ask for:

  • Tensile yield and ultimate strength at design temperature, with elongation and reduction of area.
  • Low-cycle and high-cycle fatigue data for the finished condition, including surface finish and stress ratio.
  • Corrosion or stress-corrosion test results for the engine environment, plus oxidation and erosion limits.
  • A maximum service temperature tied to time-at-temperature, thermal gradients and approved material allowables—not a generic grade claim.
  • Nondestructive inspection evidence for inclusions, porosity and subsurface cracking.

How do compressor-stage loads change the blisk design?

A stainless-steel blisk usually belongs in a relatively cool fan or low-pressure-compressor stage, where its strength and corrosion resistance survive the combined temperature–stress history. Rotational speed matters twice: centrifugal stress rises approximately with the square of speed, while a heavier stainless rotor increases hub and disk loading.

Do not base blisk material selection on tensile strength alone.

Check these loads together:

  • Start-stop cycles create low-cycle fatigue through repeated thermal expansion and centrifugal loading. A grade with inadequate strain-life data can crack at the hub even when its static strength is high.
  • Blade vibration creates high-cycle fatigue. Confirm resonant-speed margins, damping, surface finish and crack-growth behaviour, not just coupon fatigue strength.
  • Rising temperature reduces precipitation-hardened stainless strength and toughness; oxidation also accelerates surface damage. Hotter compressor and turbine sections usually favour nickel-based alloys instead.
  • Salt, moisture and combustion contaminants drive corrosion or stress-corrosion cracking. The specified aging condition matters because maximum strength can reduce toughness and environmental resistance.
  • Sand, dust and rain cause leading-edge erosion. Erosion changes the airfoil profile, increases local stress and can trigger vibration.
  • Foreign-object damage produces dents or cracks at the leading edge. Because a blisk has no replaceable blade root, one damaged blade can require rotor replacement.

That makes stainless steel aero engine blisks more plausible in cooler, lower-pressure stages than in high-temperature sections. As speed, temperature, impact exposure or duty-cycle severity rises, compare the stainless grade’s fracture toughness, crack-growth data and service-temperature limit against titanium or nickel-based alternatives.

What changes when the rotor is integral rather than conventionally bladed?

Removing dovetails and blade roots reduces part count, weight, leakage paths and attachment-related stress, but it turns a damaged blade into a rotor problem. A conventional disk can receive a replacement blade; an integral rotor normally needs qualified blending, welding, laser deposition, or complete blisk replacement, followed by balance and inspection.

For stainless steel aero engine blisks, machining also becomes a process-control issue rather than a simple shape-making exercise. Work hardening, interrupted cuts at blade edges, thin-airfoil deflection, restricted access in hub fillets and heat concentration can create burrs, subsurface damage and profile drift.

Heat treatment after rough machining can distort airfoils and relax residual stress, so leave controlled stock before heat treatment and finish critical features afterward.

Use this acceptance checklist:

  • Inspect blade profiles, hub, bore, runout and datum interfaces against defined limits; a scan colour map alone does not establish interchangeability.
  • Set separate limits for fillet radius, platform transition and blend shape. Small changes there can raise stress concentration or alter vibration even when the nominal airfoil passes.
  • Specify surface texture, waviness, burr removal and subsurface-defect inspection. A dimensionally correct surface with grinding damage remains unacceptable.
  • Define the balance datum, balancing method or speed, allowable residual unbalance and repeatability after repair. Material removal changes both mass distribution and aerodynamic loading.
  • Require approved design or repair data, material identity and heat-treatment evidence; a drawing generated from a scan is not an approved replacement design.

How should you qualify a replacement or reverse-engineered stainless-steel blisk?

A replacement is not interchangeable or airworthy because its scan matches the old part. Ask how aero engine parts manufacturers choose stainless steel engine for blisks before accepting a reverse engineered stainless steel blisk, and require evidence tied to controlled datums, functional axes and the engine interface.

  • Request the bore or shaft axis, disk and platform datums, airfoil section profiles, hub fillets, tip clearances, runout, and balance limits, supported by CMM results and profile reports.
  • Confirm mating dimensions for the shaft, seals, platforms and adjacent stages. Require acceptance criteria for surface roughness, edge condition, burrs and residual unbalance.
  • Specify the exact grade, product form, material specification and complete heat-treatment condition. “17-4 PH” is incomplete without solution treatment and aging, such as H900 or H1150.
  • Request ultrasonic or other suitable inspection evidence for internal and subsurface defects, plus dimensional inspection after final machining.
  • Trace the material from billet or forging through heat treatment, machining, non-destructive testing and final inspection. Include lot, furnace and inspection-record identifiers.
  • Obtain approved design, repair or substantiation data for the intended engine section. A drawing reconstructed from an unregistered point cloud is not approval.
EvidenceAcceptable recordRisk if missing
GeometryDatum-based CAD, CMM and airfoil-profile reportsMisalignment or wrong clearances
MaterialMill certificate, heat-treatment record and lot traceabilityUnknown strength, toughness or temperature limit
IntegrityUltrasonic, surface NDT and balance resultsHidden defects or vibration
ApprovalControlled design or repair approvalNo basis for installation

Include BVPL Turbine Parts in the same evidence request, rather than treating its manufacturing capability as a substitute for engineering approval.

Related services

Reverse Engineered Aero Engine Blades and Blisks

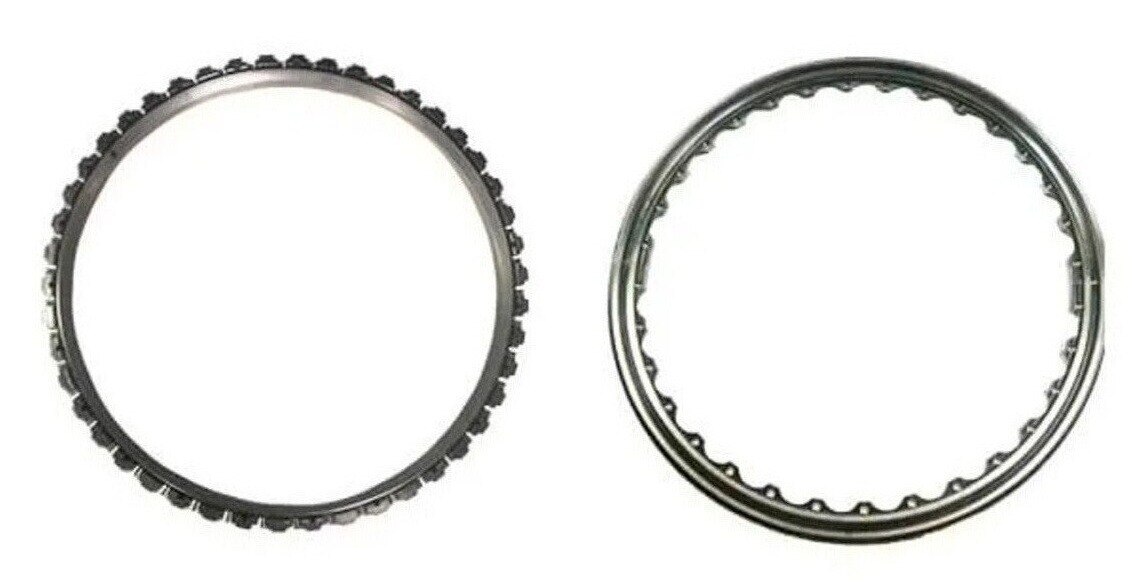

Blisks for Aero Engines Material : Stainless Steel

Blisks for Aero Engines Material : Stainless Steel

Reverse Engineered Aero Engine Blades and Blisks

Reverse Engineered Blades by BVPL Material : Aluminium, Stainless Steel and Titanium

Reverse Engineered Blades by BVPL Material : Aluminium, Stainless Steel and Titanium

Frequently asked questions

  • When does stainless steel make sense for a blisk?

    Stainless steel suits relatively cool fan and low-pressure-compressor stages, plus industrial gas turbines with a defined moderate-temperature envelope. Confirm the maximum metal temperature before selecting it.

  • Which grade, heat-treatment condition and temperature limit should you specify?

    Specify the exact stainless-steel grade, product form, heat-treatment condition, mechanical-property requirements and maximum allowable metal temperature. Do not approve a material from the alloy name alone.

  • How do compressor-stage loads change the blisk design?

    Rotational speed, pressure rise, blade mass and airflow determine centrifugal, bending and vibratory loads. Recheck blade roots, disk stress, fatigue life, tip clearance and modal separation for each stage.

  • What changes when the rotor is integral rather than conventionally bladed?

    An integral blisk removes separate blade attachments but makes the disk and blades one repair-critical part. Manufacturing accuracy, residual stress, balance, foreign-object damage inspection and repair limits become central design controls.

  • How should you qualify a replacement or reverse-engineered stainless-steel blisk?

    Match the original material condition, geometry, mass properties, balance, surface finish and temperature capability. Use dimensional inspection, material verification, non-destructive testing and documented stress and fatigue evidence before release.
