Choosing Nimonic 115 is a stress, temperature, manufacturing and lifecycle decision—not a simple material upgrade. By the end, you will be able to judge where its creep and rupture strength justify the cost, which blade form and production route fit the duty, and what evidence to request from a manufacturer.
Key takeaways
- Use Nimonic 115 where creep and stress rupture threaten airfoil shape.
- Match alloy selection to metal temperature, stress, and duty cycle.
- Request heat-treatment records, material certificates, and dimensional inspection results.
- Compare product forms before choosing forging, machining, or a near-net route.

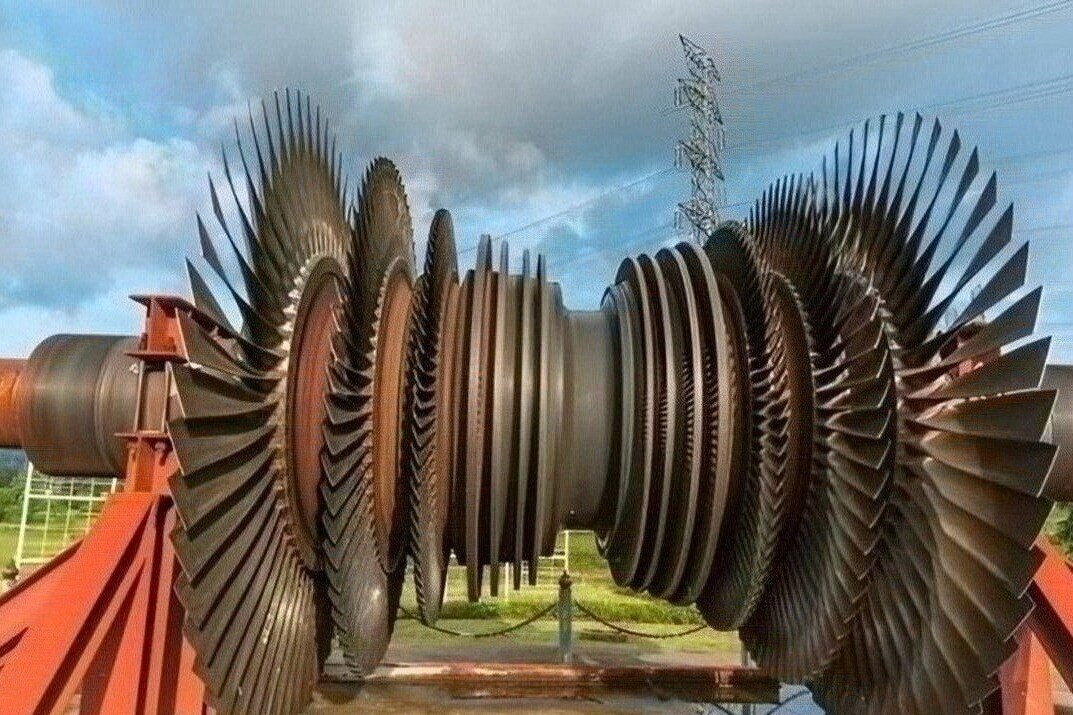

Where Nimonic 115 Creates Its Strongest Advantage
Nimonic 115 addresses the blade failure modes that appear when heat and centrifugal load act together: creep, stress rupture and loss of airfoil shape. Its nickel-base, precipitation-hardened structure contains a high volume of gamma-prime precipitates, while chromium, cobalt and molybdenum strengthen the matrix.
That combination helps high pressure turbine blades retain geometry during prolonged hot-section exposure.
| Operating problem | What Nimonic 115 contributes | Result |
|---|---|---|
| Creep under sustained load | High-temperature strength resists slow plastic deformation | More stable airfoil shape and tip clearance |
| Stress rupture during long exposure | Gamma-prime strengthening delays rupture damage | Longer resistance to load-bearing failure |
| Thermal and mechanical cycling | Stronger material tolerates repeated temperature and centrifugal-load changes | Lower risk of distortion and crack initiation |
| Hot-gas oxidation | Chromium provides baseline oxidation resistance | Coatings may still be required for prolonged exposure |
The advantage is not automatic for intermediate pressure turbine blades. Compare calculated metal temperature, centrifugal stress, dwell time and oxidation environment against lower-cost nickel alloys before specifying it.
Nimonic 115 also does not replace directionally solidified or single-crystal blades in the hottest zones, and its strength does not eliminate the need for aluminide, overlay or thermal-barrier coatings.
Match the Alloy to Metal Temperature, Stress and Duty Cycle
Specify Nimonic 115 for a high-pressure blade when calculated metal temperature and sustained centrifugal stress make creep or stress rupture the governing life limits. Its precipitation-hardened nickel structure retains strength during long hot-section exposure, helping preserve airfoil geometry and tip clearance instead of allowing gradual stretch.
Metal temperature, not combustor or gas-path temperature, must anchor the decision. Map the blade’s temperature gradient, peak local stress, dwell time at temperature, start-stop frequency and required rupture life. A short, highly transient duty cycle creates a different material case from continuous base-load operation.
For intermediate pressure turbine blades, Nimonic 115 is suitable when the metal-temperature and stress combination still threatens creep, fatigue or dimensional stability. It is not an automatic upgrade: compare the predicted life and inspection interval with a lower-cost nickel alloy before specifying it.
- Choose Nimonic 115 when sustained hot stress demands greater creep and rupture resistance than conventional steels or lower-alloy nickel grades provide.
- Require an oxidation-control system when exposure, fuel contaminants or cooling-air conditions exceed the alloy’s uncoated capability. Chromium helps, but it does not make the blade oxidation-proof.
- Reassess the choice for the hottest zones if a directionally solidified or single-crystal architecture removes transverse grain-boundary weakness and delivers longer creep life.
Compare Nimonic 115 with Competing Blade Materials
Compare the alloys against the blade’s metal temperature, stress, dwell time, oxidation environment and required product form—not against tensile strength alone. Nimonic 115 suits high pressure turbine blades where creep and stress-rupture life outweigh its roughly 8.2 g/cm³ density; for intermediate pressure turbine blades, verify that a cheaper alloy cannot meet the duty.
| Material | Advantage over or limitation versus Nimonic 115 | Best comparison point |
|---|---|---|
| Nimonic 90 | Lower-temperature, established nickel-superalloy option; less suitable as heat and creep demands rise | Compare life, coating need and cost at the calculated metal temperature |
| Nimonic 105 | Strong creep capability, but selection depends on stress, fabrication route and approved data | Compare rupture allowables and grain structure, not alloy name alone |
| Inconel 718 | Easier to manufacture and widely available, but its long-duration high-temperature capability is lower | Use it when temperature and dwell permit the trade |
| René alloys | Cast, directionally solidified and single-crystal René grades can outperform wrought Nimonic 115 in the hottest zones by reducing transverse grain-boundary weakness | Compare casting architecture, cooling design and inspection requirements |
| Ceramic-matrix composites | Far lighter and capable of extreme hot-section operation, but vulnerable to impact, oxidation-system damage and different repair constraints | Compare density, damage tolerance, cooling demand and qualification risk |
Nimonic 115 is therefore a load-capacity choice, not a low-mass choice. A coating may still be required, and rotor balance, centrifugal loading, root design and customer-approved material data must be checked before selection.
Choose the Right Product Form and Manufacturing Route
A wrought Nimonic 115 specification does not automatically match a hot-section blade. Wrought material offers consistent chemistry, fine grain control and good fatigue performance; forging adds directional grain flow and strengthens highly loaded root sections, but complex airfoils may require more machining and incur greater tooling wear.
| Option | Effect on blade performance | Suitable use and trade-off |
|---|---|---|
| Wrought | Uniform, fine-grained structure supports fatigue and dimensional consistency | Machined or fabricated blades; limited by transverse creep strength |
| Forged | Grain flow follows the component, improving root and low-cycle fatigue strength | Highly stressed shapes; tooling and airfoil complexity increase |
| Cast | Near-net geometry and internal cooling passages are practical, but equiaxed grain boundaries reduce creep capability | Lower or moderate temperature stages; inspect porosity and shrinkage |
| Directionally solidified | Grain boundaries run parallel to the principal stress, reducing transverse creep damage | Hotter turbine zones; higher casting and inspection demands |
| Single crystal | Removes grain boundaries, delivering the strongest creep and rupture performance | Hottest high-pressure blades; expensive, orientation-sensitive and process-intensive |
The phrase “Nimonic 115 blade benefits in Munich” describes no special local material property. Gas turbine blade and vane manufacturers in Munich face the same choice: match metal temperature, centrifugal stress, dwell time and oxidation exposure to the architecture.
Nimonic 115 can provide creep margin, but chromium alone does not prevent oxidation; coating qualification may still be required. Verify the product form, heat treatment and melt identity before approval.
Control Machining, Heat Treatment and Blade Inspection
Specified performance depends on documented controls, not the alloy name alone. Buyers researching nimonic 115 blade benefits in Munich should require the exact product form, melt identity, accepted material standard, and a controlled route from blank to inspected airfoil.
| Control | What to verify | Failure if uncontrolled |
|---|---|---|
| Machining | Drawing datums, profile tolerances, cutting parameters, coolant, tool-wear limits and surface finish | Burrs, notches or residual stress become crack starters; profile errors disturb airflow and tip clearance |
| Heat treatment | Recorded solution temperature, hold time, cooling rate, ageing cycle and furnace uniformity | Incorrect gamma-prime size, grain-boundary condition or residual stress reduces creep and rupture capability |
| Inspection | CMM airfoil geometry, fluorescent-penetrant testing, radiography or ultrasonic testing where specified, hardness and metallographic checks | Cracks, inclusions, distortion or an unverified microstructure pass into service |
Do not accept a mill certificate that says only “Nimonic 115.” The dossier must connect each blade to its heat-treatment charts, machining records and inspection results.
Treat repair welding as a separate qualification route. Control filler selection, preheat, interpass temperature, heat treatment and post-repair inspection because precipitation hardening and residual stress can cause heat-affected-zone or strain-age cracking. A wrought blade also needs design-specific stress and temperature validation; it is not automatically equivalent to a directionally solidified or single-crystal blade.
What to Request from a Manufacturer Before You Specify Nimonic 115
Before approval, demand evidence for the exact blade—not a mill certificate that only says “Nimonic 115.” Confirm the customer-accepted material specification, wrought or forged product form, melt identity, heat-treatment condition, design temperature, stress basis and coating or repair route.
Request these records:
- Material certificate linking chemistry, melt number, solution treatment, cooling rate, ageing cycles, hardness and grain structure.
- Creep or stress-rupture data at the blade’s calculated metal temperature and stress, plus tensile and fatigue results where specified.
- CMM dimensional report, airfoil profile results, balance data, fluorescent-penetrant inspection and any radiographic or ultrasonic examination.
- Manufacturing route, machining allowance, tooling plan, lead time, minimum order quantity, price validity and replacement-part terms.
- Certificate of conformity, full traceability from raw material to finished blade, nonconformance history and first-article inspection plan.
BVPL Turbine Parts should be asked for these records in the same review used for any supplier; “gas turbine blade and vane manufacturers nimonic 115 blade benefits in munich” is not a technical qualification.
| Record type | Acceptable evidence | Approval question |
|---|---|---|
| Technical | Heat-treatment charts and test reports | Does the condition support your temperature and stress? |
| Commercial | Quote, schedule and tooling assumptions | Are cost and delivery risks defined? |
| Quality | CoC, traceability and NDT records | Can every blade be traced and accepted? |
Do not treat “nimonic 115 blade benefits in munich” as a local material advantage. Verify the engine or system customer’s written acceptance first.
