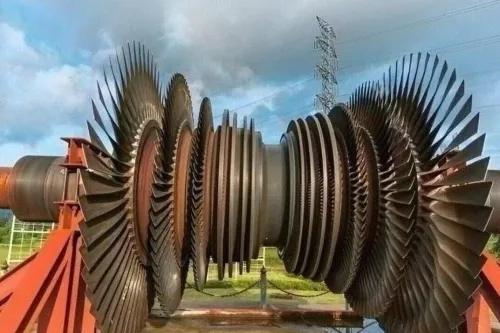

A used turbine blade is evidence, not automatically a reliable blueprint: wear, impact, coating loss and distortion can all be captured as if they were original design features. By following the inspection, reconstruction and validation chain, you can judge whether a replacement blade is based on defensible engineering or only on a fast scan of a damaged part.
Key takeaways
- Separate service damage from intended design before scanning the reference blade.
- Use datums, airfoil sections, and cooling passages to control reconstruction accuracy.
- Demand material certificates, process records, and inspection results before approving replacements.
- Compare manufacturers by traceability and validation, not material claims alone.
How engineers identify the reference blade and separate design from damage
Before scanning, engineers establish which blade represents intended design rather than service history. They review engine position, serial and batch records, operating hours, repairs, and failure reports, then inspect the part before cleaning or sectioning it.
Creep distortion, oxidation, erosion, tip rubs, foreign-object damage, enlarged cooling holes, coating loss, and platform cracks can otherwise become features in the CAD model.
They compare several blades from the same engine population. Repeated geometry across undamaged areas is stronger evidence of design intent than a feature appearing on one worn blade; manufacturing variation must be separated from damage.
Functional datums, usually the root attachment and platform, also anchor the decision before any whole-part best-fit alignment hides clocking or assembly errors.
- Mark as suspect any isolated deformation, rubbed tip, torn edge, blocked or enlarged hole, missing coating, or crack.
- Treat airfoil sections with consistent chord, camber, twist, and leading- or trailing-edge radii as design evidence.
- Preserve a damaged blade for failure analysis rather than using it as the sole reference.
| Method | Evidence gained | Limitation |
|---|---|---|
| Optical or structured-light scan | Fast external shape capture without contact | Cannot prove hidden passages or unworn dimensions |
| CMM contact measurement | Precise points on datums, root, platform, and airfoil | Slow and limited on complex internal geometry |
| CT plus sectioning and metallurgy | Internal passages, wall thickness, alloy condition, and damage evidence | Higher cost, possible destruction, and engineering judgment remains essential |
This evidence-led selection is the foundation for reliable reverse engineered turbine blades.
How datums and measurement methods capture the blade correctly
Start with the engine coordinate system, not the scan. Establish primary, secondary, and tertiary datums from the functional root attachment and platform, then define the blade axis, radial position, and clocking angle before aligning any point cloud. This preserves the relationship between the root and airfoil.
Use a CMM to verify the root form, critical diameters, platform location, and selected airfoil sections. Use optical or structured-light scanning for dense coverage of the airfoil, leading edge, trailing edge, fillets, and tip.
The methods complement each other: reflective coatings, narrow edges, deep fillets, and blocked sightlines can make an optical scan unreliable without tactile checks.
Record the geometry against the datum frame, not against a whole-part best fit. A best-fit alignment can distribute error across the blade and hide an oversized trailing edge, incorrect root-to-airfoil clocking, excessive twist, or platform displacement.
- Capture section profiles at defined span heights and calculate chord, camber, stagger, lean, twist, and stacking-axis position.
- Inspect cooling-hole locations, angles, and openings separately; smoothing can close holes or alter their direction.
- State temperature, probe or scanner accuracy, sampling density, datum scheme, and uncertainty with every deviation result.
For aluminium turbine blades and hot-section parts alike, a colour map without these controls does not demonstrate interchangeability. Reverse engineered turbine blades still require drawing-specific limits for profile, runout, wall thickness, root geometry, and cooling features.
How external airfoil and hidden cooling geometry become CAD
An outer scan supplies the airfoil skin, not the complete design. Engineers rebuild sections at measured span positions, then reconcile chord, camber, leading- and trailing-edge radii, stagger, twist, lean and stacking axis. Copying a worn tip or smoothing sparse scan points can alter flow capacity and stress while still producing a convincing surface match.
The CAD reconstruction must connect these feature groups:
- Airfoil, platform, fillets and shroud, aligned to the established blade coordinate system
- Root attachment geometry, including fir-tree or dovetail serrations, contact faces, clocking and load-bearing radii
- Internal passages, ribs, turning features, impingement cavities and minimum wall thickness
- Cooling holes, including diameter, spacing, breakout shape, compound angle and passage connection
A scan cannot prove hidden geometry. Industrial X-ray computed tomography reveals passages without cutting the part, but dense alloys and coatings create beam-hardening and metal artifacts; demonstrate resolution and uncertainty on the actual blade or a representative coupon.
Borescope inspection through existing holes adds limited visual evidence, while serial or metallographic sectioning establishes passage shape and wall thickness at the cost of destroying samples.
For reverse engineered turbine blades, engineers combine these observations with sectioned evidence from comparable parts and design judgment. Stainless steel turbine blades still require this discipline: coating removal, oxidation and erosion can change the apparent substrate, so record dimensions before and after stripping. Build the CAD from intended geometry, not the most damaged evidence.
How engineers release the reconstructed model for manufacturing
A scan is not a manufacturing definition. Before reverse engineered turbine blades can be produced consistently, the CAD model must lock the engine coordinate system, datum scheme, stacking axis, airfoil sections, chord, camber, stagger, twist, lean, leading- and trailing-edge radii, platform, fillets, root, shroud, tip features, cooling holes, and internal passages.
- Establish the model’s master datums and coordinate origin, then identify every derived dimension from them. State the inspection temperature, measurement method, and uncertainty; a colour map showing nominal deviation does not prove interchangeability.
- Define geometric limits by feature. Give profile, runout, wall-thickness, root-fit, cooling-hole position and diameter, platform, and tip tolerances where the approved design requires them. Do not borrow generic turbine-blade tolerances.
- Add manufacturing requirements: material grade, heat treatment, machining allowances, surface roughness, coatings, edge condition, blend limits, hole finishing, marking, and process-critical characteristics.
- Create the drawing with section views and hole tables that a machinist and inspector can reproduce, including datum targets, geometric tolerances, and acceptance methods.
- Link the model and drawing to revision control, inspection plans, material and heat-treatment records, non-destructive inspection, and full process traceability.
Release the package only after checking the reconstructed geometry in the assembled or functionally relevant condition. Accurate machining alone does not establish airworthiness; approved design data and the applicable production and conformity route are separate requirements.
How inspection proves the replacement matches the intended blade
A replacement blade is proven only when three records agree: measured geometry against drawing datums, material and NDT evidence, and installed-position checks. A color map alone proves none.
| Check | Evidence | Failure it exposes |
|---|---|---|
| Profile and position | CMM or validated optical data for chord, camber, twist, stagger, lean, edge radii, platform, shroud, root, runout and stack-line position, with temperature and uncertainty recorded | Incorrect loading, rubbing or poor fit |
| Internal condition | CT or radiography for passages and cooling holes, plus fluorescent penetrant or eddy-current inspection for cracks; metallography and hardness verify structure | Blocked cooling, porosity, fatigue cracks or wrong heat treatment |
| Functional fit | Root engagement, platform contact, tip clearance, balance and engine-specific drawing limits checked in the intended stage position | A blade that measures well but cannot carry load safely |
The limits are drawing-specific, not generic. Compare coated and stripped dimensions because uncontrolled coating removal can alter the substrate or hide oxidation.
Titanium turbine blades in Bengaluru must be judged by engine location and service temperature: titanium suits cooler compressor hardware, not a nickel hot-section substitute. Verify alloy, alpha-case or oxygen contamination, heat treatment, fatigue and root fretting. Stainless steel turbine blades likewise require proof of temperature, oxidation and creep capability.
For certificated engines, approved design data, conformity, traceability and the applicable approval route remain separate from dimensional accuracy.
How to evaluate aftermarket manufacturers and material claims
Treat interchangeability as an evidence decision, not a scan-quality decision. Aftermarket aero-engine parts manufacturers reverse engineered blades should provide a validation package that connects the source part, material, process and finished inspection to the exact engine position.
1. Request the source-part population, service history and condition records. One worn blade cannot distinguish design intent from creep, erosion, tip rub, coating loss or cooling-hole enlargement.
2. Request the datum scheme, measurement method, temperature and uncertainty budget behind every profile, root, runout, wall-thickness and hole result. A colour map against nominal CAD proves little without those controls.
3. Request the drawing or approved design data, plus conformity evidence for the applicable approval route. Accurate machining does not make a scan-derived model airworthy.
4. Request the material certificate, heat-treatment chart, coating records and non-destructive inspection results. “Titanium” is not enough: titanium turbine blades in Bengaluru still require alloy, alpha-case, fatigue, fretting and service-temperature evidence.
5. Challenge material labels. Aluminium turbine blades generally do not suit hot gas paths; stainless steel turbine blades face temperature, oxidation and creep limits. Nickel superalloy grade and crystal structure matter for hot sections.
6. Confirm traceability and inspection in the assembled or functionally relevant condition. BVPL Turbine Parts should be evaluated by the same records, not its catalogue material list.
