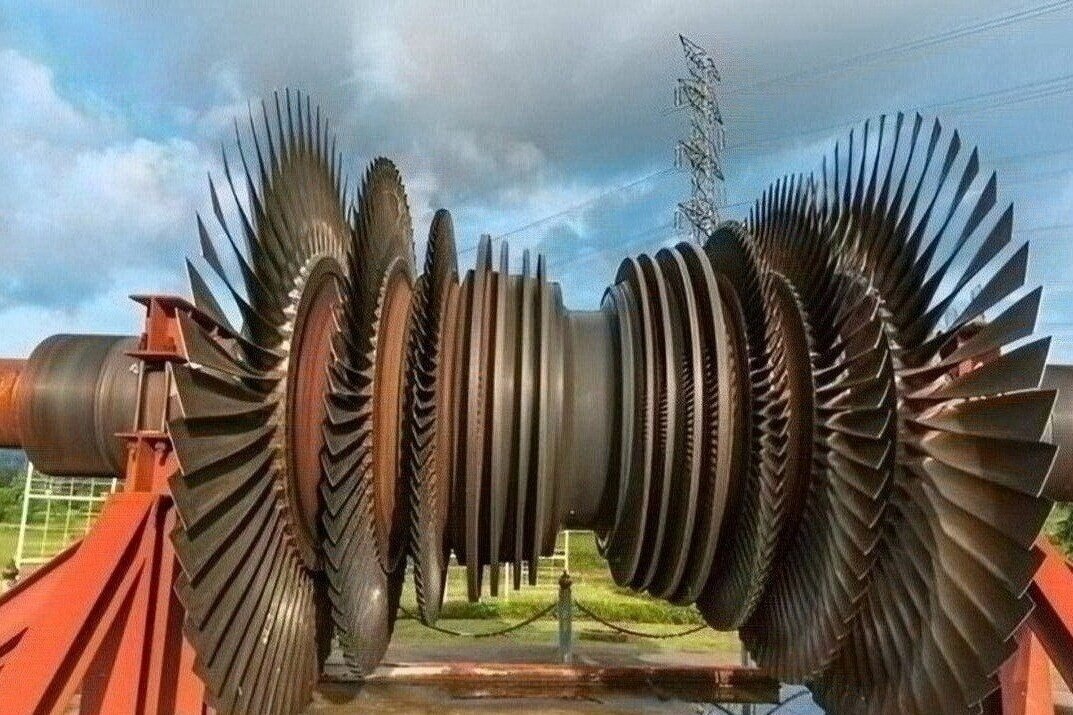

A reverse-engineered blade can match an old part’s outline and still fail at the root, in the gas path, or under operating loads. Use the decision test, reference-part rules, inspection evidence, and approval checks below to determine when a replacement is defensible and when an OEM, repair, standard aftermarket part, or new design is safer.
Key takeaways
- Use reverse-engineered blades when the design basis and operating duty are known.
- Collect drawings, service history, material data, coatings, and dimensional inspection records.
- Recover original geometry from unworn sections, not damaged or eroded surfaces.
- Require dimensional, material, coating, balance, and functional validation before release.
When is a reverse-engineered blade the right replacement?
Reverse engineering means inspecting an existing blade or vane, capturing its geometry, identifying its material and coating system, reproducing it, and validating the result through inspection, testing, and comparison with an accepted design basis. A scan alone is not reproduction.
The practical question is when to use reverse engineered blades. Choose this route when the engine model is obsolete, the OEM no longer supplies the part, drawings are unavailable, demand is low-volume, or a fleet contains mixed configurations that require one controlled, repeatable replacement.
These conditions create a reverse engineered aero engine blade need, especially with low fleet numbers and unavailable OEM data.
| Option | What it means | When it applies |
|---|---|---|
| Reverse engineered blade | Reproduce and validate an existing part | Obsolete engines, mixed configurations, or unavailable OEM supply |
| OEM part | Buy the original approved article | Supply and approval exist |
| Repair | Restore the installed part | It remains within documented service limits |
| Standard aftermarket part | Use an established replacement design | Its design basis and approval match your engine |
| New custom blade | Create a new design | Operating duty, stage, or mating hardware has changed |
The strongest case combines a stable fleet configuration with an approved drawing, service limit, or other design basis for comparison. A scan of one worn blade does not define design intent; erosion, tip rub, oxidation, impact damage, and previous repairs can become manufactured defects.
What evidence must you collect before approving the replacement?
Approval starts with an identity record, not a scan. Capture the part number, engine model, stage designation, serial or configuration number, left- or right-hand orientation, and number of parts in the set. A part number alone is not enough for custom replacement turbine blades.
- Root and platform geometry, including fir-tree or other load-bearing interfaces
- Airfoil section coordinates, stacking axis, twist, tip shape, and shroud features
- Cooling-hole layout, hole angles, coatings, heat treatment, and repair history
- Material specification, coating system, and any configuration-specific drawing or service-limit record
Select an unworn original or serviceable blade as the primary geometry reference. Compare several parts when production variation is unknown; use a damaged part to document interfaces and failure evidence, not as the master profile.
| Reference choice | Use | Risk if misused |
|---|---|---|
| Unworn original | Establish nominal geometry | Confirm its configuration first |
| Serviceable part | Capture production-ready form | Remove approved repair effects from nominal data |
| Damaged part | Record interfaces and failure evidence | Erosion, rubs, oxidation, impact, and repairs distort the profile |
| Complete blade set | Establish mass spread, circumferential variation, and orientation | A single blade hides set-level variation |
Measure the installed assembly when platform, shroud, clocking, or casing relationships control fit. Separate nominal geometry from leading-edge erosion, tip rub, oxidation, platform wear, impact damage, and previous repairs. That evidence determines when to use reverse engineered blades rather than reproduce a worn shape.
How do manufacturers recover geometry without copying wear?
A whole-part best-fit alignment of a point cloud can hide a serious error. The software may average away misalignment at a fir-tree root, platform datum, shroud seal, or locating surface, then produce the wrong installed stagger or stack.
| Method | Best use | Main limit |
|---|---|---|
| Coordinate measuring machine | Functional surfaces and airfoil sections | Slow on complex external shapes; cannot reveal hidden passages |
| Optical scanning | Rapid external-envelope capture | Misses internal geometry, wall thickness, and concealed defects |
| Computed tomography | Passages, inserts, wall thickness, impingement features, and hidden defects | Requires suitable resolution and scan interpretation |
| Drawing reconstruction | Historical design data or surviving section coordinates | Fails when design records are incomplete or configurations differ |
Build the inspection around functional datums, not scan alignment alone:
- Root or fir-tree interface
- Platform locations
- Shroud features and seals
- Airfoil profile sections and stacking axis
- Tip geometry
- Cooling-hole breakout locations
For a hot-section part, external CMM or optical scanning is insufficient. Passage shape, impingement features, film-cooling-hole angle and diameter, and wall thickness influence metal temperature, creep, oxidation, and life. That evidence matters in a reverse engineered aero engine blade need, including custom replacement turbine blades.
Require material and coating characterization beside metrology: alloy specification, heat treatment, grain structure or directional-solidification condition where applicable, mechanical properties, surface condition, coating system, and coating process history. A dimensionally accurate part with the wrong material or coating can fit the engine and still fail in service.
What proves that the blade or vane will work after it fits?
A blade can fit its root and still fail functional acceptance. Physical fit proves that interfaces assemble; functional acceptance proves that the part preserves load transfer, airflow, clearances, cooling, vibration margins, and service life.
| Component | Functional checks | Failure consequence |
|---|---|---|
| Rotating blade | Root load path and contact; platform seals; tip or shroud relationship; mass, centre of gravity, circumferential placement, installed stagger, balance, vibration margins, and resonance risk | Excessive stress, imbalance, resonance, leakage, or rub |
| Stationary vane | Nozzle-guide-vane or stator throat area; platform and shroud sealing surfaces; clocking, casing interfaces, orientation, and circumferential stacking | Wrong stage matching, excitation, thermal loading, or flow capacity |
Check axial and radial clearances with rotor and casing growth included, not only at room temperature. For both parts, compare airfoil sections, twist, stacking axis, airflow direction, throat area, tip treatment, coating allowance, and cooling performance against the mating rotor, stator row, or stage.
A small profile or throat-area change shifts incidence, reaction, loading, flow capacity, and efficiency. It also changes leakage, heat transfer, and rub risk. Correct dimensions cannot prove cooling effectiveness, aerodynamic behaviour, material capability, or coating performance.
For custom replacement turbine blades, require evidence that covers:
- Functional-datum inspection of the root, platform, shroud, profile sections, tip, and hole breakouts—not only whole-part best-fit scanning.
- Aerodynamic comparison and clearance analysis for the installed configuration.
- Mass and balance records for rotating parts; vane variation analysis for stage matching and excitation.
Use reverse engineered blades only after these checks establish acceptance against the applicable design or service basis. Dimensional inspection alone is insufficient.
How should you control approval, manufacturing, and supplier selection?
Approve custom replacement turbine blades only through a controlled verification chain; a visual match does not prove that reverse engineered blades fit.
1. Identify and assess the reference part, its condition, service history, configuration, and failure evidence. Do not treat a worn or repaired blade as the master profile.
2. Define functional datums and interfaces at the root, platform, shroud, airfoil sections, tip, and cooling-hole breakouts. Measure the external envelope with CMM or optical scanning, and use computed tomography for passages, wall thickness, inserts, and hidden defects.
3. Characterize the alloy, heat treatment, grain structure or directional-solidification condition, mechanical properties, surface condition, coating system, and coating process history.
4. Qualify the manufacturing process, then complete dimensional inspection and NDE, including the specified penetrant, radiographic, ultrasonic, or eddy-current examinations.
5. Use coupons, rig tests, or engine validation when aerodynamic, thermal, vibration, coating, or life risk warrants it.
For an aircraft engine, require the purchaser to identify the accepted installation route under 14 CFR 21.9: the type certificate, Parts Manufacturer Approval under 14 CFR 21.303, an approved design change, owner/operator production authorization, or another recognized basis. A matching geometry is not automatically installable on a type-certificated engine.
For an industrial gas turbine, put engine, plant, and quality requirements in the contract: material and coating pedigree, NDE, dimensional reports, balancing, repair history, and acceptance criteria. When evaluating BVPL Turbine Parts, request its inspection plan, traceability records, reference-part rationale, and validation evidence before approving a quote.
