A package can mean one airfoil, a matched rotor set, a complete engine stage, or an assembly with platforms, seals, retainers, and records. By defining the contents, comparing the right aero engine blade specifications, and checking fit, inspection evidence, and approval status, you can judge whether a quotation represents a usable replacement or only a similar-looking part.
Key takeaways
- Demand the engine, module, stage, row, drawing revision, and quantity in every quote.
- Confirm whether the package is a single component, matched set, stage, or module set.
- Compare airfoil geometry, attachment dimensions, material, coating, and cooling features.
- Require inspection records, traceability documents, and installation eligibility before purchase.
What an Aero Engine Blade and Vane Package Contains
Expect a defined bill of material, not a vague promise of an “airfoil package.” The quotation should state the engine and module, stage or row, drawing revision, quantity, and whether it covers a single airfoil, matched set, complete stage, or engine-module set.
Depending on the configuration, the package may contain:
- Rotor blades with roots, platforms, shrouds, or retainers
- Compressor or turbine stator vanes supplied as segments or nozzle-guide-vane components
- Carrier interfaces, seals, clips, locking hardware, and other installation parts
- Coating, dimensional blending, balancing, and inspection services
Do not assume a segmented vane quotation includes a complete ring. Compare every line of the supplier’s bill of material with the maintenance requirement.
“Matched” also needs a definition. Ask whether matching uses mass, center of gravity, moment weight, platform height, radial length, throat area, or aerodynamic flow capacity; mass matching alone does not establish aerodynamic compatibility or rotor balance.
The package should include traceability and acceptance records for the replacement blade and vane components. Request the certificate of conformance, material and heat-treatment records, coating report, dimensional inspection, and non-destructive inspection results. For U.S.
civil-aircraft installation, ask what approved basis establishes eligibility, such as Parts Manufacturer Approval under 14 CFR 21.303, approved design data, or an authorized repair process. A certificate of conformance alone does not provide that approval.

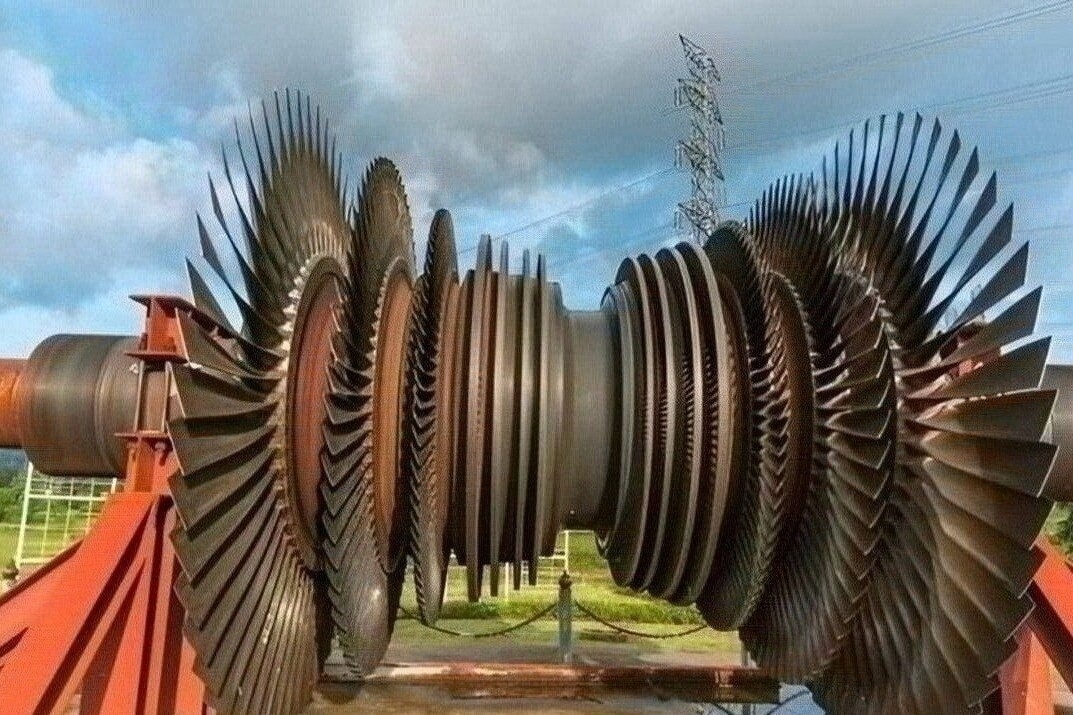

How Blades and Vanes Change from Compressor to Turbine
Rotor blades turn with the shaft; vanes stay fixed in the engine case. That distinction holds through both compressor and turbine sections, although inventory systems sometimes use “blade” and “vane” inconsistently, so confirm the module and row rather than relying on the noun alone.
| Section | Rotating part | Stationary part | Identifiers in records |
|---|---|---|---|
| Compressor | Compressor rotor blade attached by a dovetail, fir-tree, or another root design | Compressor stator vane mounted between cases, carriers, or variable-vane mechanisms | LPC, IPC, or HPC; rotor stage number; stator row; variable stator vane or inlet guide vane |
| Turbine | Turbine rotor blade, often with a platform, cooling passages, and a fir-tree root | Turbine guide vane or nozzle guide vane, often supplied as a segmented assembly with inner and outer platforms | HPT or LPT; turbine stage; NGV or nozzle row; shroud, carrier, or segment reference |
A compressor airfoil appears in a cooler module and usually has no thermal-barrier-coating notation or extensive cooling-hole map. A turbine airfoil record often identifies nickel-based material, diffusion aluminide or platinum-aluminide, thermal-barrier coating, film-cooling holes, oxidation limits, and hot-section inspection findings.
Look for “rotor,” “blade,” “dovetail,” “fir-tree,” or balance data to identify a rotating part. Look for “stator,” “vane,” “nozzle,” “segment,” “carrier,” “inner platform,” or “outer platform” to identify a stationary part.
Ask aero engine vane suppliers to state whether quoted replacement blade and vane components are rotor blades, stator vanes, or complete nozzle segments; the package label alone does not establish interchangeability.
The Aero Engine Blade Specifications and Fit Data to Compare
A blade fits only when its geometry, attachment, material condition, and approved engine application agree. The package label alone proves nothing: “matched set” could mean rotor blades only, while another quote includes platforms, seals, retainers, coating, and inspection data.
| Item | Compare | Why it matters |
|---|---|---|
| Airfoil geometry | Section, span, chord, twist, stagger, platform, shroud, surface finish, tolerances, and cooling-hole pattern | Controls airflow, clearances, cooling, and row position |
| Attachment | Root or dovetail profile, fir-tree dimensions, lock features, carrier or segment interface, and hardware | Prevents an apparently correct airfoil from seating or retaining correctly |
| Material condition | Alloy, specification, heat-treatment condition, and lot or heat traceability | Establishes strength, creep resistance, and repair limits |
| Coating system | Coating name, substrate preparation, thickness, masking, and qualified process | Changes oxidation life, clearances, and cooling-hole dimensions |
| Engine record | Engine family, module, stage or row, position, drawing revision, and approved design data | Establishes whether the part is eligible for that installation |
Ask the supplier for the bill of material and compare aero engine blade and vane packages line by line. Confirm whether the offer contains individual components, a matched rotor set, a complete stage, or segmented nozzle-guide-vane assemblies.
- Request dimensional reports tied to the drawing revision, including root, platform, airfoil, and cooling-hole measurements.
- Confirm balance requirements for rotor blades and circumferential position requirements for vanes.
- Separate a certificate of conformance from installation eligibility. For U.S. civil aircraft, ask for the applicable FAA-approved basis, such as a Parts Manufacturer Approval under 14 CFR §21.303, approved design data, or an authorized repair process.
Inspection Records, Traceability, and Installation Eligibility
Reject any airfoil whose identity, condition, and installation basis cannot be proven. A certificate of conformance confirms conformity to a stated drawing or purchase order; it does not, by itself, establish FAA eligibility for a particular engine.
1. Define the package on the purchase order. State whether it is an individual airfoil, matched set, complete stage, or assembly with platforms, shrouds, seals, retainers, and hardware. Compare the bill of material line by line; a segmented nozzle-guide-vane package is not automatically a complete ring.
2. Match every part to the aero engine blade specifications: engine and module, stage or row, position, drawing revision, serial or lot number, material and heat-treatment condition, coating system, datum scheme, tolerances, and cooling-hole pattern. Record the attachment or platform geometry as well as the airfoil.
3. For new parts, request the manufacturer’s certificate of conformance, material and heat-lot certificates, dimensional report, coating and special-process records, non-destructive inspection results, and calibration or inspection status. Confirm that the documents identify the supplied part numbers and revisions.
4. For used airfoils, require removal history, total hours and cycles, life-limited-part status, prior inspection findings, repair history, and a current serviceability inspection. Missing cycle data can make an otherwise sound part ineligible.
5. For repaired or replacement blade and vane components, demand the approved repair data, repair map, process records, post-repair dimensional and NDI results, and release documentation. Check the installation basis under 14 CFR 43.9, 43.10, and 21.303, including PMA or other approved design data.
How to Qualify Gas Turbine Blade and Vane Manufacturers
Compare the supplier’s installation evidence, process control, and delivery risk—not just the quoted airfoil price. A Texas address does not prove aerospace capability; the same applies elsewhere. For searches such as “gas turbine blade and vane manufacturers aero engine blade vane packages texas,” verify the following:
| Criterion | Weak evidence | Stronger evidence |
|---|---|---|
| AS9100 | Certificate with no scope | Current certificate naming the design, manufacture, or repair activities you need |
| Special processes | “Approved suppliers” stated verbally | NADCAP scope where applicable, plus material and coating approvals |
| Regulatory basis | Manufacturer’s certificate of conformance alone | FAA Parts Manufacturer Approval under 14 CFR §21.303, approved design data, or an authorized repair basis |
| Inspection and traceability | Final dimensional sheet only | Calibrated equipment records, heat and lot traceability, and inspection results linked to each serial number |
| Technical experience | Generic turbine work | Delivered parts for your engine family, stage, root or dovetail, and attachment design |
Require a line-by-line bill of material. Confirm whether the price covers airfoils only, a matched set, platforms, shrouds, seals, retainers, coating, blending, and records; segmented nozzle-guide-vane assemblies are not interchangeable with a complete ring.
Ask aero engine vane suppliers what “matched” means. Mass matching does not prove equal moment weight, center of gravity, throat area, or aerodynamic flow capacity.
BVPL Turbine Parts belongs on a comparison list only after you verify those documents and the specific engine-family experience behind the quotation.
Frequently asked questions
What should an aero engine blade and vane package quotation contain?
It should identify the engine and module, stage or row, drawing revision, quantity, and package scope. Scope must state whether the quote covers one airfoil, a matched set, a complete stage, or an engine-module set.
How do blades and vanes differ between compressor and turbine sections?
Compressor blades and vanes manage progressively compressed air and typically use airfoil geometry suited to lower temperatures. Turbine blades and vanes operate in hot gas, so compare cooling passages, thermal-barrier coatings, high-temperature alloys, tip features, and platform or attachment design.
Which aero engine blade specifications and fit data should you compare?
Compare the part number and drawing revision, airfoil dimensions, span and chord, platform dimensions, root or attachment geometry, material, coating, cooling-hole layout, balance data, and allowable wear or repair limits.
Which records establish that replacement blade and vane components are eligible for installation?
Request the certificate of conformity, material and heat-treatment records, inspection reports, dimensional results, coating or repair records, serial or lot traceability, and documentation linking each component to its drawing revision and approved status.
How can you qualify gas turbine blade and vane manufacturers?
Check whether the manufacturer can produce the required geometry and material, control special processes, provide traceable inspection evidence, and explain how it verifies fit. Review sample quality records and confirm experience with your engine family and application.
